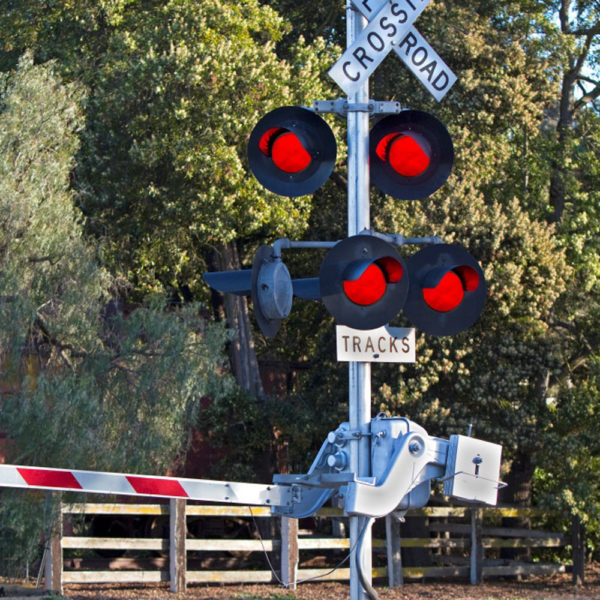

LED Railroad Grade Crossing IL Series Signal Module

Longer Lasting, Brighter Light

  • Meets AREMA and Transport Canada standards for Safety Assurance
  • Side Lights available in both red or white for extra safety and visibility
  • Easy to retrofit
  • Excellent moisture and dust resistance
  • Eliminates the appearance of “phantom signal”
  • Robust hard-coated and UV-stabilized polycarbonate lens for increased longevity against the elements
  • Maintains 70% of the initial lumen intensity after 100,000 hours of operation
  • 5-Year Limited Warranty


Environmental Parameters AREMA Part 11.5.1 – Class B
MIL-STD-883, Test Method 1010
NEMA Standard 250-1991, Section and for Type 4 enclosures
Photometry AREMA Part 3.2.35/TC E-14
Transient Immunity AREMA Part 11.3.3/C.4.a
Dielectric 6kVrms
Electronic Noise FCC Title 47 Sub. B Sec 15 Class A
EMI AREMA Part 11.5.1 – Class B
Operating Temperature -40⁰F to 160⁰F (-40⁰C to 70⁰C)
Operating Voltage 8-20Vdc, 8-16Vac (50/60 Hz)
Power Factor >0.90
Turn-On/Turn-Off Time <75msec
Power Surge >45Vrms for 80ms
