Alumi-Glass Extendable Roadway Arm

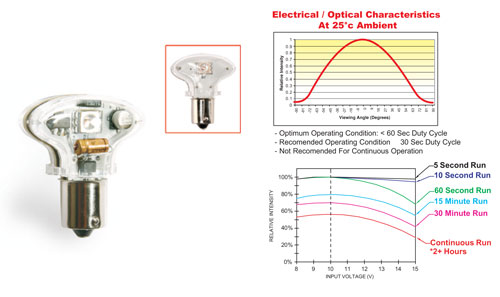

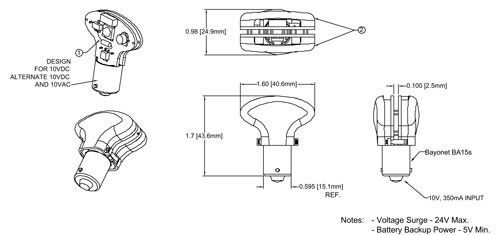

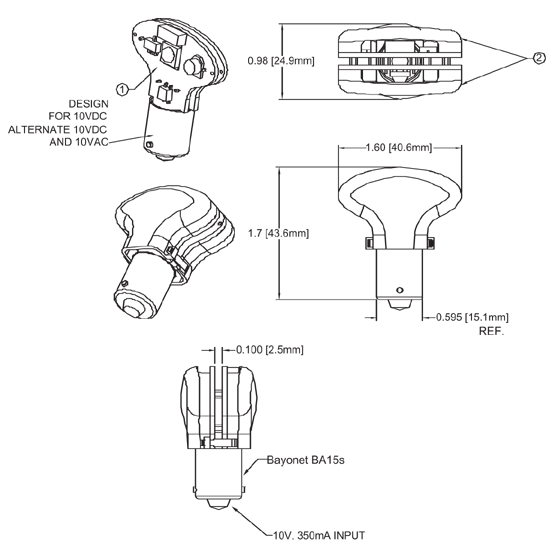

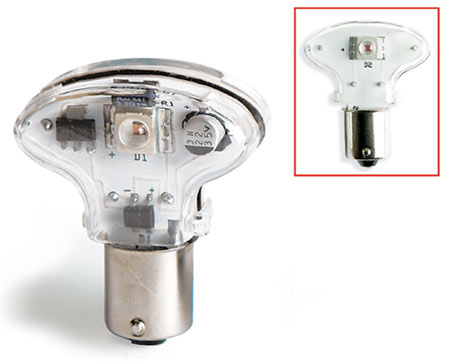

4 inch LED


LED Part No.
Chip
Lens Appearance

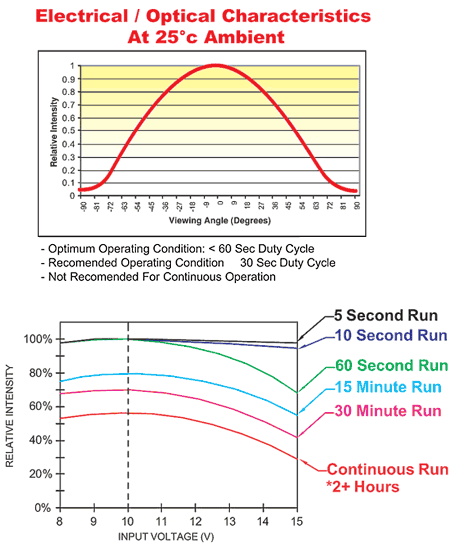

Electro-Optical Data@
18 - 16v		 Lamp
viewing
Angle
(Deg)
Material
Emitted Color
Dominant
Wave
Length
λd (nm)
Temp coef.
Δλd/ΔTj
PD
(W)
Lumens@1LED/Side
Typ.
NEG18200R
AllnGaAIP
RED
620
645
WATER CLEAR
0.05
2.7
30
140

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)
REVERSE VOLTAGE ___________________________ 5V
REVERSE CURRENT (VR=5V) ___________________________ 100μA
OPERATING TEMPERATURE RANGE ___________________________ -25°~85°C
STORAGE TEMPERATURE ___________________________ -30°~100°
LEAD SOLDERING TEMPERATURE
(1/16" FROM BODY)		 ___________________________ 260°C for 5 seconds
