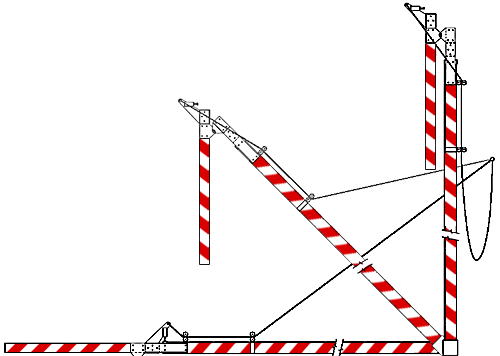

We have had over 20 years experience with articulated gates and now offer a standard arm for your special requirements. Articulated gates are used in areas of overhead power lines and cantilevers that wouldotherwise obstruct a gate arm in its upright position. Articulated gates fold at one third the length as to decrease the vertical position, so the gate does not get hung up with aforementioned items. Please use the following parts list to order specific replacement items for maintenance.

Ordering Information
Item Number	Section	Description	Requirements
1	2nd Section	NEG 502—Add Length Plus A.G.T.
2	3rd Section	NEG 503—Add Length Plus A.G.T.
3	Spacer Block	3/4 x 1-1/2 x 4-3/4 Aluminum Flat	4 Req.
4	Extension Plate	1/4 x 4 x 24 Aluminum Flat	2 Req.
5	Stop Bar	1/4 x 1-1/2 x 5 Aluminum Flat	1 Req.
6	Hinge Plate	1/4 x 6-1/4 x 7-1/8 Aluminum Flat	2 Req.
7	Swivel Plate	1/4 x 6-1/4 x 7-1/8 Aluminum Flat	2 Req.
8	Cable Plate	1/8 x 10 x 13-1/2 Steel Plate	2 Req.
9	Striker Support	1-1/2 x 4 x 3/16 x 1-1/2 Steel Angle	2 Req.
10	Brass Bushing	See Detail Drawing	2 Req.
11	Steel Shaft	See Detail Drawing	1 Req.
12	Hex Nut	1/2 -13 Hex S.S.	2 Req.
13	Cotter Pin	1/8 x 1-1/2 S.S.	2 Req.
14	Hex Head Cap Screw	1/4 -20 x 3/4 S.S.	6 Req.
15	Split Lock Washer	1/4 S.S.	6 Req.
16	Internal Lock Washer	5/16 S.S.	24 Req.
17	Hex Head Cap Screw	5/16 -18 x 1-3/4 S.S.	8 Req.
18	Hex Head Cap Screw	5/16 -18 x 1 S.S.	16 Req.
19	Hex Head Cap Screw	1/2 -13 x 3-1/2 S.S.	2 Req.
20	Hex Jam Nut	1/2 -13 S.S.	8 Req.
21	Threaded Rod	1/2 -13 x 3-1/2 S.S.	1 Req.
22	Guye Wire Cable Assembly	NEG (Length of Gate Arm)
23	Pully System	NEG (Length of Gate Arm)
24	Offset Stangent	NEG (5 A.G.T—10 NEG / 5 A.G.T.—12)
25	Regular Stangent	(5 A.G.T.—5)
